Reference: PR00000670

The VCX n.8 is a high-end 300 MHz impedance controlled 100 Ohm multi-pair switch for selection 5 or 10 cable ... Details

Request information

Infos Price Visit Urgent
You will be contacted by the company owner of this product within 3 days after the reception of your request.
Your urgent request must be answered within 24 hours.

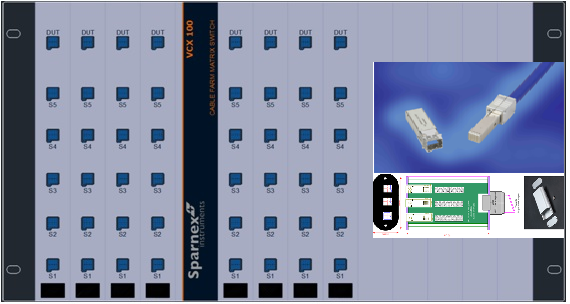

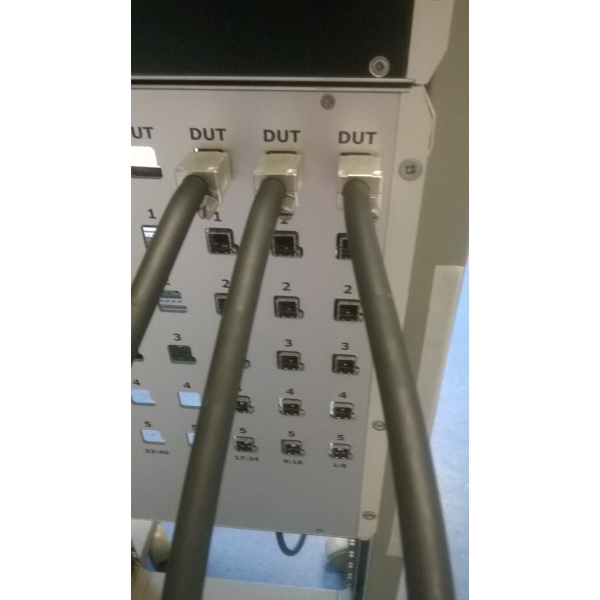

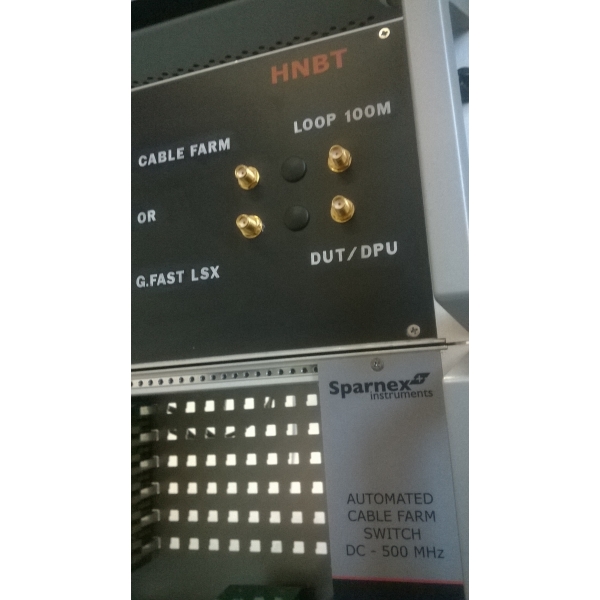

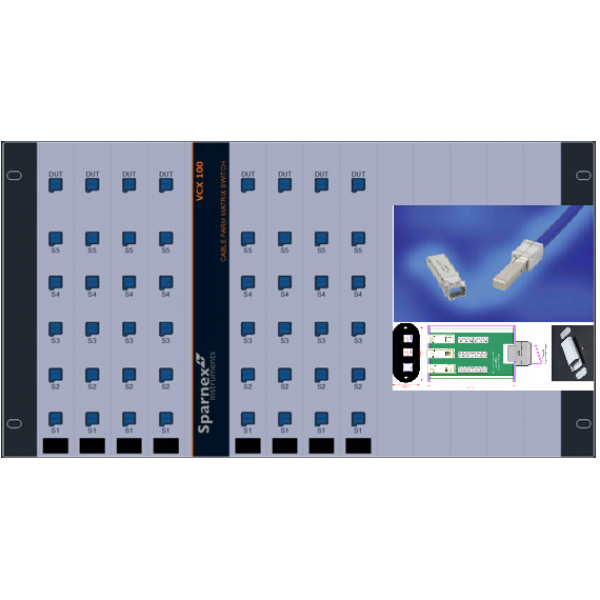

The VCX n.8 is a high-end 300 MHz impedance controlled 100 Ohm multi-pair switch for selection 5 or 10 cable segments, with a capacity of 960 pairs. Each pair can individually be selected for 1 length, or with cascaded lengths depending on use test case. This high-end broadband switch is used to test broadband technologies like VDSL, Vector VDSL, G.fast .. be it according Telco proprietary test plans or according Standards such as TR-249, APT 337, WT-380 in a colocated or non-colocated configuration. Micro-interrupts, Noise Injectors and Noise Generation are selectable for each of the selected pair(s) to allow for any test configuration.
  • High end 2 GHz switches future proof
  • Relays test circuit for every connection easy maintenance of thousands relays

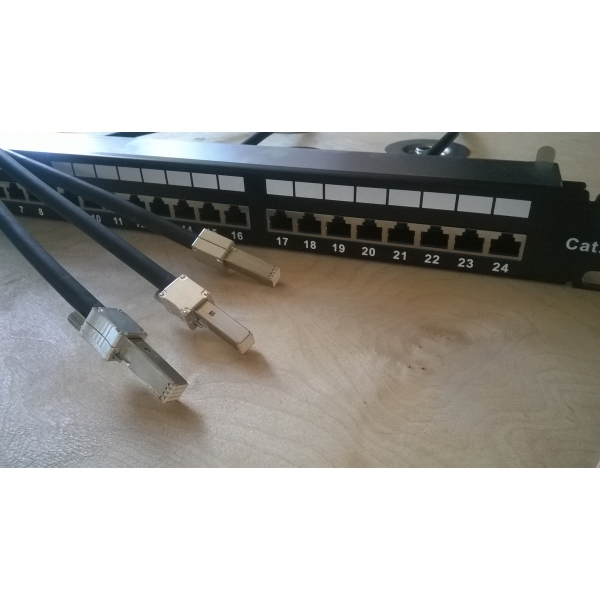

  • Special HFD connectors up to 10 GHz
  • Smalles insertion loss < 0, 3 dB@ 100 MHz
  • Balanced 100 Ohm impedance controlled system guaranteeing signal integrity of transmission signals

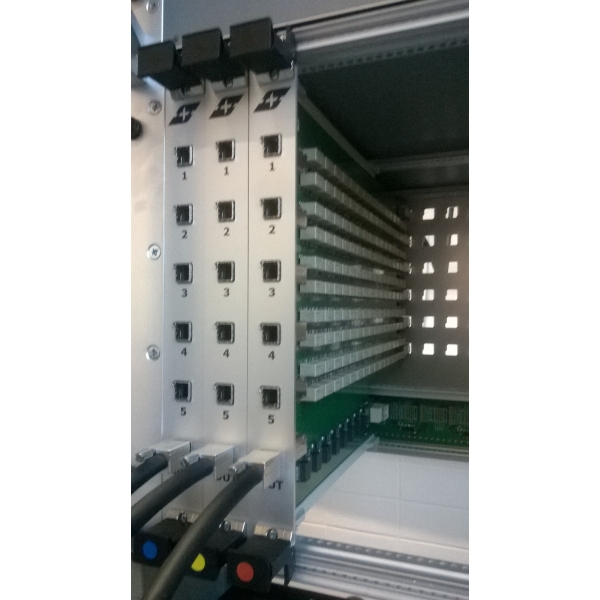

  • Modular concept per 8 pairs, 5 or 10 cable segments

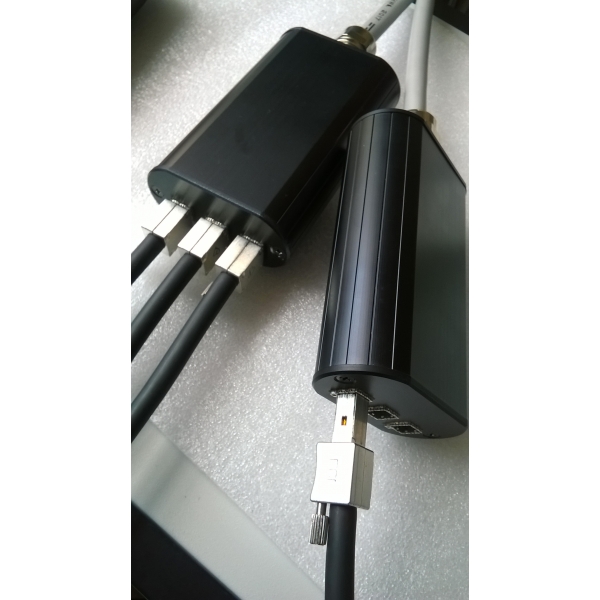

  • Expandable with Noise Injectors, Micro interrupts, and multi port ANG 2120 or ANG 2240 Noise generators
  • Expandable with multi port DUT switches and matrix
  • ICL software CLI controlled, GUI up to 960 pairs
  • Compliance Testing TR 249, APT 337, WT 380
  • Gives comfort on any test case and allows 24/7 testing
  • Pre programmed test scenario's
  • Cables, patching, configured test case are 100 % under control
  • Mechanical cable strength and special multi pair cable connectors allow for easy installation and long product live time
  • Multi pair/multi user Vectoring Testing matrix with use of real cables according TR 248, ID 337, G. fast
  • Generates FEXT and NEXT crosstalk in a natural way as present in the field for representative performance measurements
  • Creates a network specific wireline test lab
  • Allows for flexible wireline configuration just in seconds
This product is available in:
  • DE AT BE BG FR LU NL PT SE
