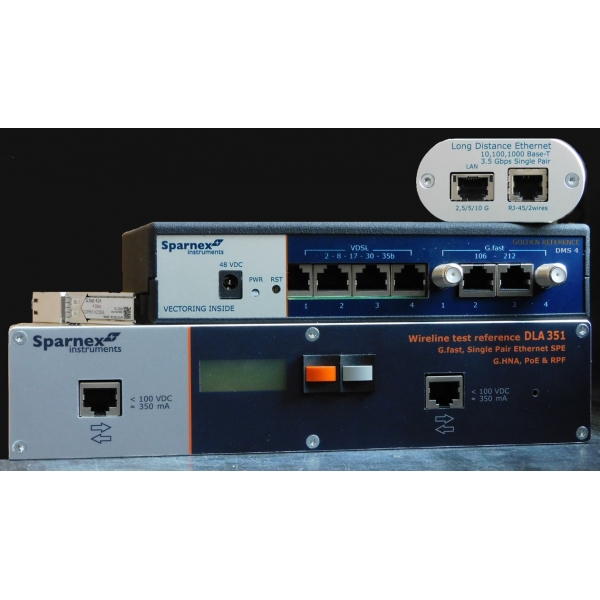

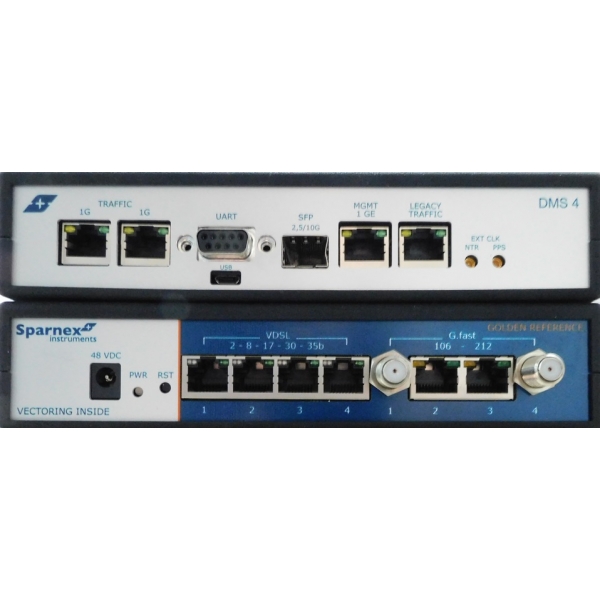

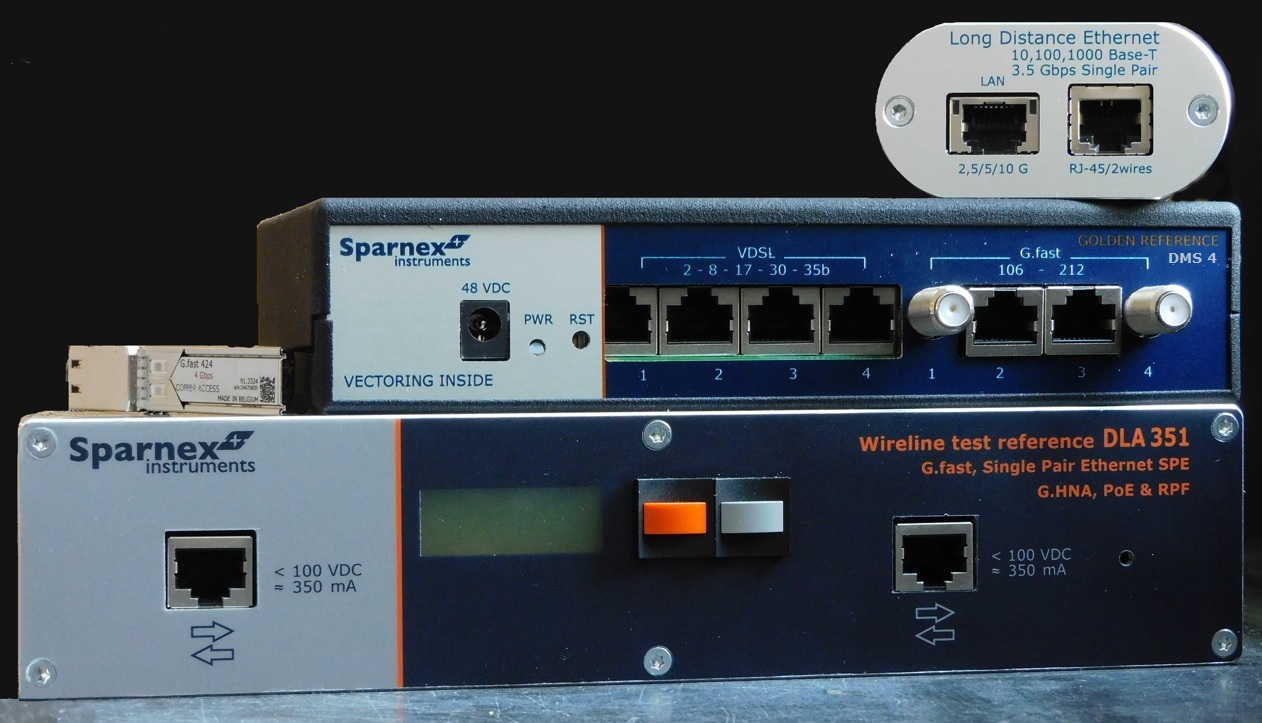

DSLAM-DPU Golden Reference DMS4
Reference: PR00000687
This versatile multimode transceivers are the industry's most advanced and most flexible solution for DSLAM, MDU, and FTTx deployments. It ... Details
Request information
This versatile multimode transceivers are the industry's most advanced and most flexible solution for DSLAM, MDU, and FTTx deployments. It is equipped with programmable firmware for running interoperability tests fully compliant with ITU-T G.xxx.x standards in a Central Office configuration or as a CPE configurable per each line of the 4 ports that run over twisted pair or coax.
DSP and AFE are capable to run G.fast 106 and 212 MHz concurrent with VDSL2 that covers the spectrum up to profile 35b. The built-in vectoring engine with sophisticated noise cancelling algorithms allows to reach maximum performance in terms of US/DS speed to the CPE in various working conditions that are created by the LSX test platform and may be registered by the DSLAM or DPU, reported in the database of test results.
DSP and AFE are capable to run G.fast 106 and 212 MHz concurrent with VDSL2 that covers the spectrum up to profile 35b. The built-in vectoring engine with sophisticated noise cancelling algorithms allows to reach maximum performance in terms of US/DS speed to the CPE in various working conditions that are created by the LSX test platform and may be registered by the DSLAM or DPU, reported in the database of test results.
- Repeatable reference
- Programmable firmware
- ITU compliant protocols
- Line management features
- Functional and performance parameters ALN, HLOG, SNR (US/DS), RMC, QLN (US/DS), LOS, ROF, LPR, LOM, LOR, LINT, NM
- Bit Allocation (US/DS), Bit Swap
- US, DS, Aggregate speed, Symmetric, Asymmetric
- PSD & profile configurator
- Retransmission, FEC
- Vectoring engine
- ICL automation link
- Preprogrammed automation scripts per ITU Standard and/or test case
- Automated Pass/Fail report generator
- test modems on max performance
- Testing modems at different lengths
- testing Interoperability
- Testing acc. Use Cases
- Validation of designs
- Production Quality Testing
- Certification of CPE, Gateway, Bridges, Modems
This product is available in:
- DE AT BE BG ES FR GR IT LU NL SI CZ
