Compact 25 xDSL Port test system

Compact 25 xDSL Port test system
Compact 25 xDSL Port test system
Reference: PR00000683

Formerly known as LISI, the new MLT 25 is expanded from ADSL towards VDSL2 profile 35b. The system reproduce 25 ... Details

or

Request information

Sign In or Register

You will be contacted by the company owner of this product within 3 days after the reception of your request.
Your urgent request must be answered within 24 hours.

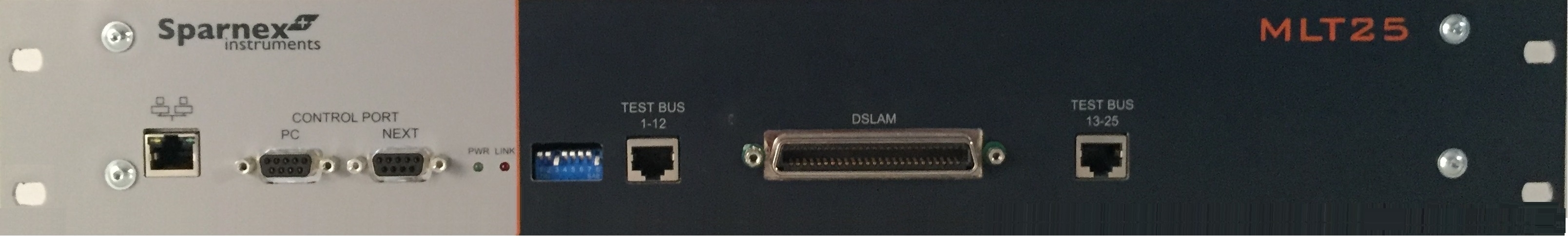

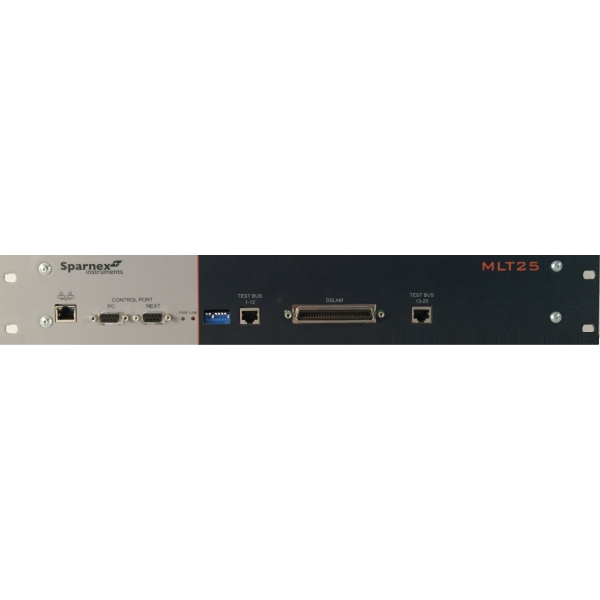

Formerly known as LISI, the new MLT 25 is expanded from ADSL towards VDSL2 profile 35b. The system reproduce 25 physical layer connections and can test 25 DSL ports simultaneously to one reference, or several groups of references. A device under test that fails the test, can be re-directed to a repair port. MLT 25 can be cascaded up to 775 simultaneous ports under test (CPE's, Gateways, or DSLAM/DPU ports.
  • Extremely reliable and robust
  • Compact 19
  • No chassis and no processor card needed
  • All xDSL flavours possible with one test bench
  • 25 simultaneous tests with individual test conditions each
  • 2 by pass ports for further investigation of failed tests
  • Reference in xDSL manufacturing plant for > 20 years
  • Quality Testing xDSL in production
  • CPE/DSLAM Software Regression Testing
  • xDSL Repair center
  • Automation of testing
  • Random Micro Interrupts per channel
  • Different lenghts programmable for different use test cases
  • Test Bench for any DSL flavours up to 35 MHz
  • Test simultaneously CPE's against different DSLAM's
  • Test against 1 up to 4 groups of 'Golden References'
This product is available in:
  • DE AT BE BG CY DK ES EE FI FR GR HU IE IT LV LT LU MT NL PL PT RO GB SK SI SE CZ
