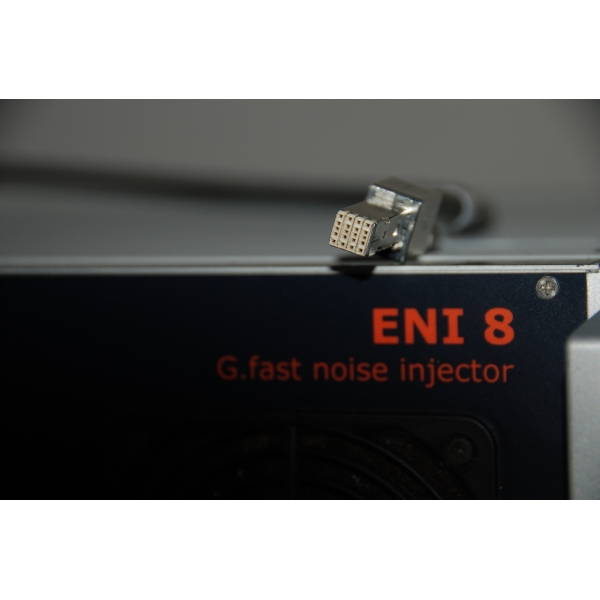

ANG 2240-D8 16 ports noise ENI-8 noise injection
Reference: PR00000676
ANG 2240-D8 is developed to test multi-pair transmission technologies like Vector VDSL and G.fast that require multi-pair noise generators and ... Details
Request information

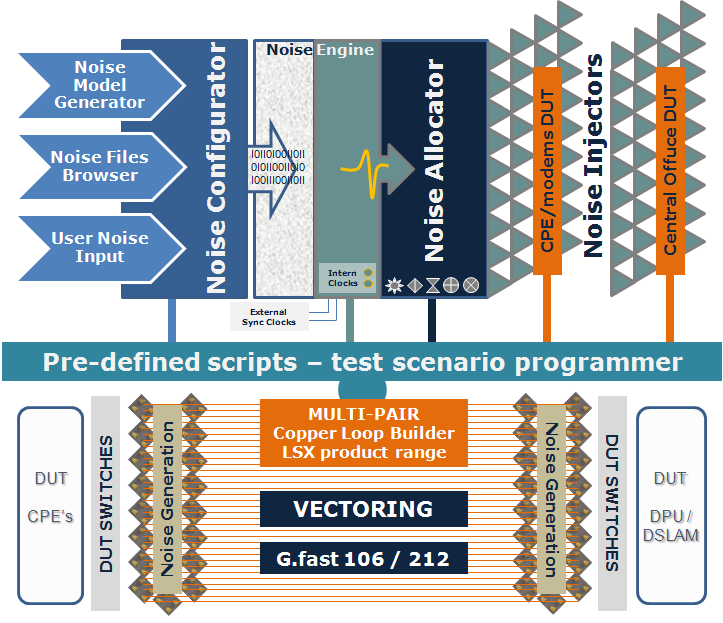

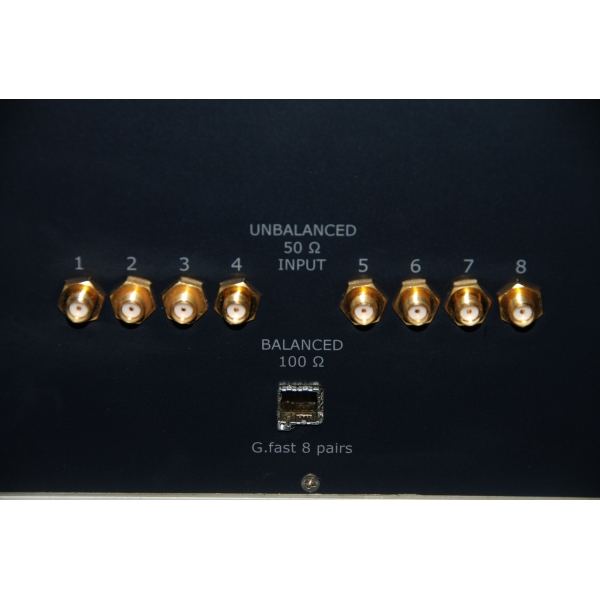

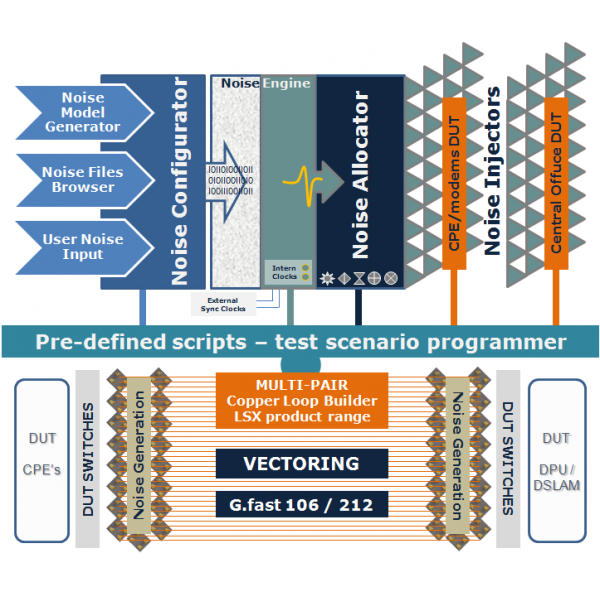

ANG 2240-D8 is developed to test multi-pair transmission technologies like Vector VDSL and G.fast that require multi-pair noise generators and noise injections in order to mimic the deployed network infrastructure per bundle, per building, or per user. Such multiple port 50 Ohm noise generators and 100 Ohm noise injectors are equipped with adders, multipliers and digital noise banks that can be combined in order to safe on the number of required generator ports. The Sparnex Instruments broadband noise injectors are unique in a way that they are transparent for the Reverse Power Feeding, enabling the tester to run any Use Test case with or without additional noises, - independent if CPE's and DPU's are equipped with RFP, be it conform to the ETSI 101.548 or with PoE.
- Highest possible accuracy on noise generator and noise injector
- Outperform any other 100 Ohm noise injector
- Transparent to PoE and Reverse Power Feeding like ETSI 101. 548
- Designed by the experts in wireline physical layer simulations
- Noise Generator Mean Average Error < 0, 5 dB over entire frequency band
- Noise Injection Mean Average Error < 1 dB over entire frequency band
- Mimic and reproduce any type of xDSL noise
- Test multi pair VectorVDSL and G. fast products
- Allow for system VectVDSL testing
- Test Profile 35b and SuperVectoring
- Combine different noise scenario's RFI, PEIN, SHINE, WGN, Shaped noise . .
- Generate programmable micro interrupts
- Test system with and without Reverse Power Feeding
- Allows for automated testing with intervals, leave and join of users
