MoCA WT-500 Test Platform

MoCA WT-500 Test Platform
MoCA WT-500 Test Platform
Reference: PR00000688

Test platform for measuring the performance of coaxial MoCA modems in each of the 4 frequency bands AA, AB, XX, ... Details

Request information

Infos Price Visit Urgent
You will be contacted by the company owner of this product within 3 days after the reception of your request.
Your urgent request must be answered within 24 hours.

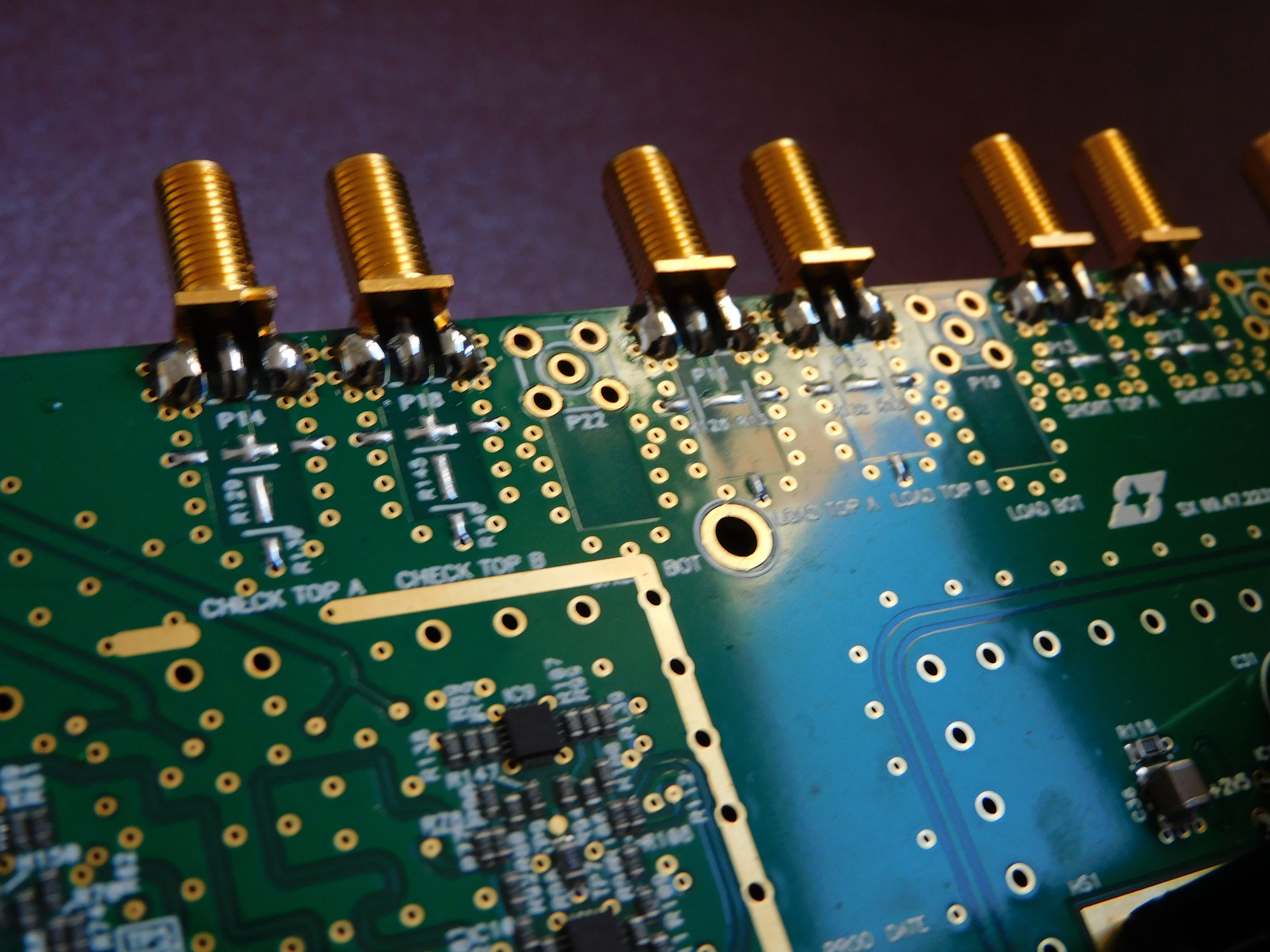

Test platform for measuring the performance of coaxial MoCA modems in each of the 4 frequency bands AA, AB, XX, YY for use cases P2P, P2MP TAP, P2MP SPLITTER up to 1Gbps and 2.5 Gbps.
  • Repeatable test results
  • Equal/comparable test setup among laboratories
  • Superior accuracy
  • Excellent return loss charactaristics
  • Controlled impedance
  • Constant electrical behaviour and attenuation over entire frequency band
  • Broad range from 5kHz to 2. 4Ghz
  • Covers also Docsis3. 0 Docsis3. 1 frequency bands
  • Stable functioning under any working condition between 25° +85°C ( 13°F +185°F)
  • Benchmarking
  • Qualification according min max performance
  • Certification
  • Functional tests
  • Duration tests
  • Environmental tests
  • Burn in tests
  • Production quality tests
This product is available in:
  • DE AT BE BG DK ES FI FR GR IT LU NL PL PT GB SI SE CZ
