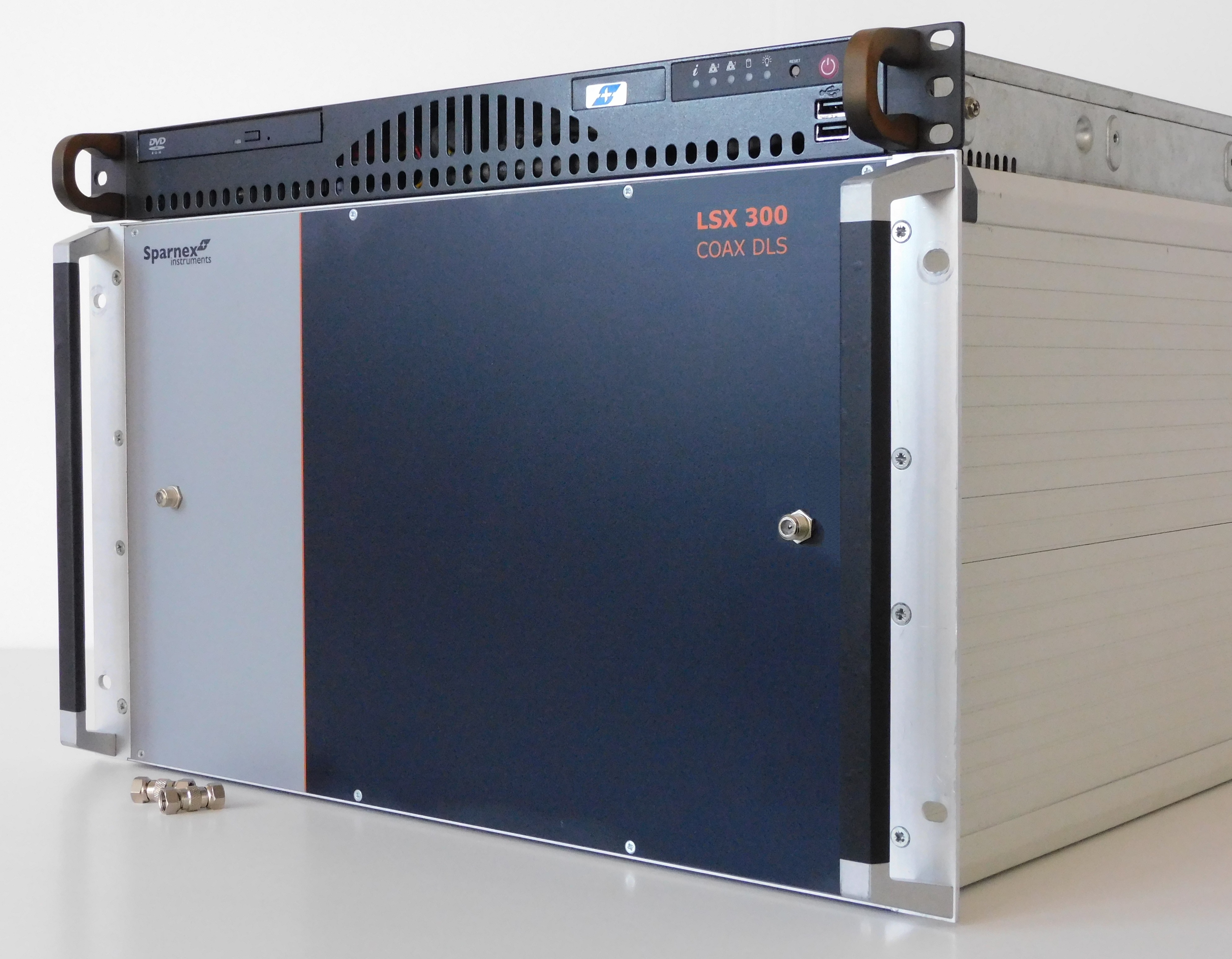

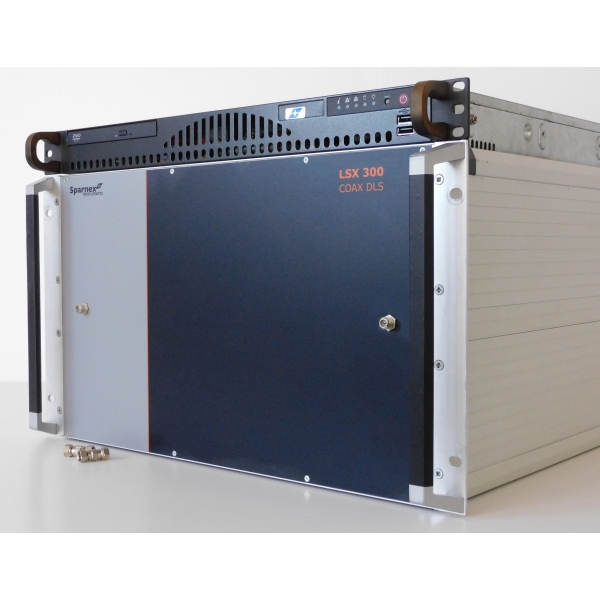

The LSX300 Coax DLS is the phyiscal layer part of a multi-technology test bench for coax modems like MoCA, DOCSIS 3.0, DOCSIS 3.1, ITU-T G.9700, G.9701 over coax. The default line is RG-6 conform to TR-285. Other than twisted pair, the coax simulator is an unbalanced carrier with programmable step size of 25 m with a noise floor better than -155 dBm and an outstanding accuracy of 15 feet. The by-pass crosstalk is better than -75dB@100MHz. It withstands and is transparent for IEEE/PoE and TNV-1 RPF acc. ETSI TS101.524 V2.11 class SR2 60VDC/15 VA. The MAE is < 1 dB acc reference line @ 100 MHz with a dynamic range up to 95 dB@212 MHz and a Return Loss better than -15 dB
  • Unique programmable coax simulator
  • Calibrated up to 0, 5 dB@10 MHz
  • Low noise, high return loss,
  • RG 6 coax reference it the lab
  • Expandable frequency band
  • Single coax reference worldwide
  • Integrated Noise Generator
  • Programmable use cases
  • Remote controlled / CLI and ICL
  • Compatible with SI automation scripts
  • pre programmed Certification tests
  • Test Report Generators with CO CPE
  • works for xDSL, G. fast, G. mgfast, H. hn, GHNA
  • Up to 1 2. 5 5 10 Gbps tests SPE
  • Pass TDD and FDX duplex
  • Real time Electrical Physical length convertor
  • Industry Standard reference
  • Testing coax modems acc. use cases
  • modem stress test on length/attenuation
  • modem interoperability tests
  • test baluns and media convertors
  • Test PoE & RPF modems
  • Testing signal integrity in full band
  • Testing syn. and re sync time
  • Test power consumption
  • Test delay and cable interruptions
  • Compare modem results between labs
  • Golden Reference test platform
  • Increase comfort on test results in the lab
