Voice/DSL Splitter Quality Testing
Reference: PR00000669
The splitter test is executed as a 'system test' where the line simulator should reproduce all characteristics of a copper ... Details
Request information

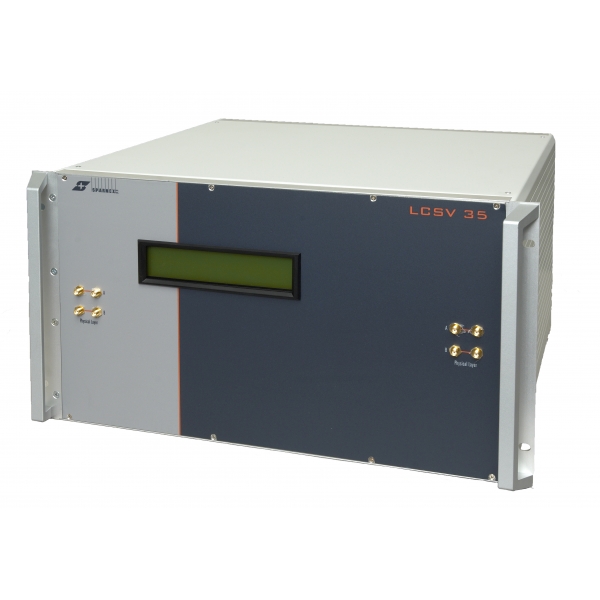

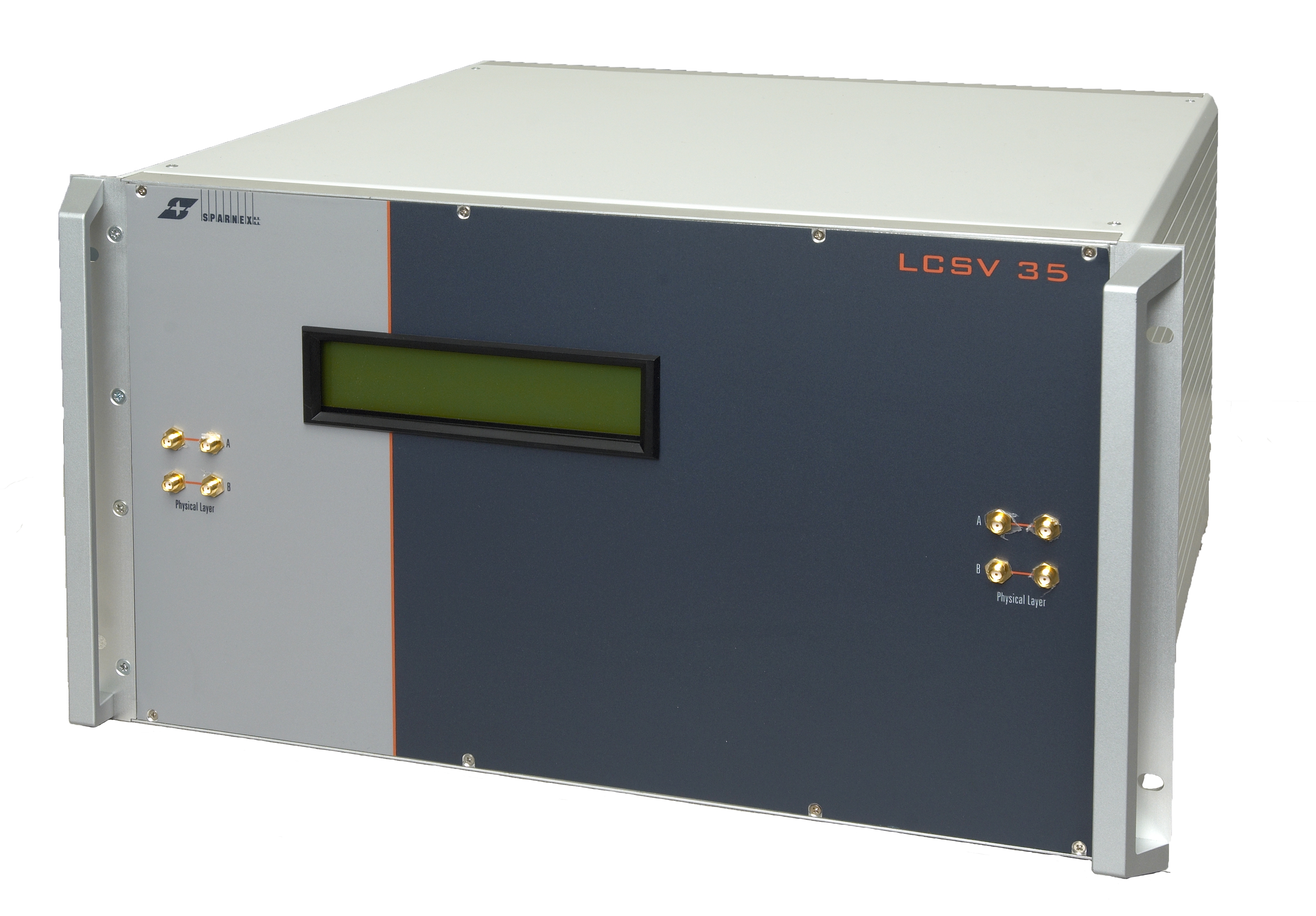

The splitter test is executed as a 'system test' where the line simulator should reproduce all characteristics of a copper pair for passing analogue signals, ring-current, DC-voltage while keeping up with ADSL and VDSL signals. The LCSV 35 is working up to 35 MHz and reproduce in a natural way all parameters of a copper pair in order to test splitters on their quality to separate voice from DSL signals without disturbing the DSL channel nor to couple any other disturber. For total system set-up, look to applications - Splitter testing.
- Integrated in automated TR 127 splitter test system
- CLI controlled, transparant for analogue signals
- Multi functional: DSLAM functions, Splitter quality, DELT/SELT and associated reporting, handheld testers, . .
- Line Simulator for Voice / DSL Splitter test quality
- Compliance test system according TR 127
- Automated testing
- Test SELT and DELT functionalities
- Test effect of splitter on DSL link for both ends CPE and multi Splitter DSLAM boards
This product is available in:
- DE BE FR IT LU
