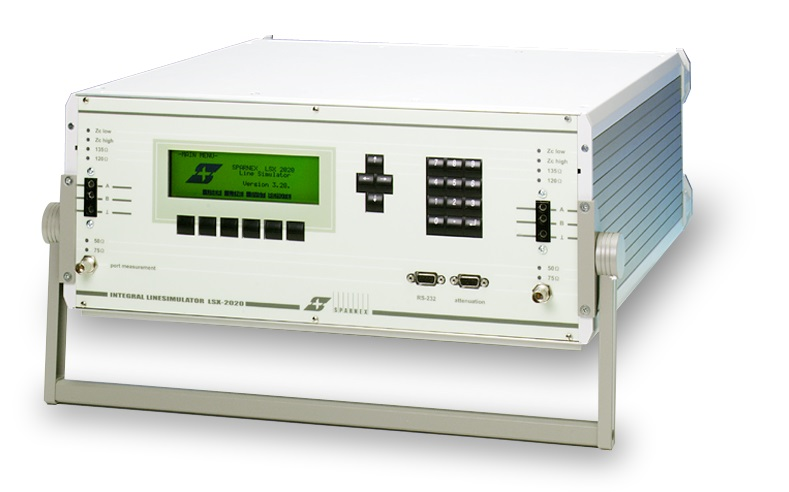

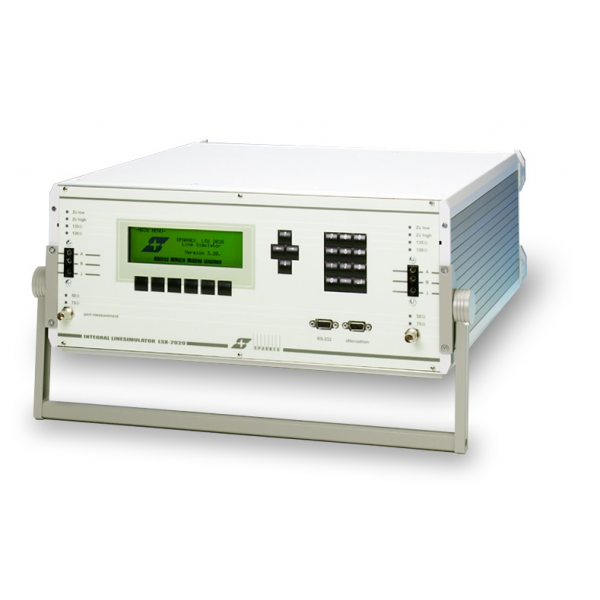

Portable and programmable Copper Line Simulator
Reference: PR00000655
Allow for programming different line type, physical lengths (meter/feet), electrical length(dB@Frequency), impedance, delay, resistance and noise-injection in a frequency band ... Details
or
Allow for programming different line type, physical lengths (meter/feet), electrical length(dB@Frequency), impedance, delay, resistance and noise-injection in a frequency band from 5 KHz to 3,5 MHz (ADSL, SHDSL, ADSL2plus)
- Programmable for any line type
- reproduce cables of diameter 0, 4 . . 1, 5 mm / 26 ~ 18 AWG
- All type of isolation PVC, PE, Paper
- Copper core or Aluminium
- Pre programmed libraries of line types available
- Pass and attenuates DC remote power supply with programmend lenght of cable
- Allows for symmetric and a symmetric signal transmission testing
- transparant for any DSL chipset vendor
- Remote CLI control for automation
- The only programmable cable line simulator in the world
- Testing CPE's and DSLAM ports
- Laboratory simulation of real world conditions
- Warranty that systems will work once they are in service
- Simulate field problems in the lab
- Regression tests with legacy products
- Define maximum performance over length of cable
- Create test reference in the lab and in the field (portable)
- Real world versus teoretical best case performance
- Benchmark your product
- Product and production quality testing
- Compare performance of technologies with customers and suppliers
This product is available in:
- DE AT BE BG CY DK ES EE FI FR GR HU IE IT LT LU NL PL PT RO GB SK SI SE CZ
